CB Install, overhead console and mirror mounted antennas **Many Pics**

Well when I first looked at my truck and saw the overhead console I knew instantly I wanted to put a cb in the cubby. Had I know how much work it would take for this I probably would have seeked and alternate mount. I also wanted to use a Cobra 29 which is indeed a rather large unit, specially when attempting to put it into the console. But onto the pics.

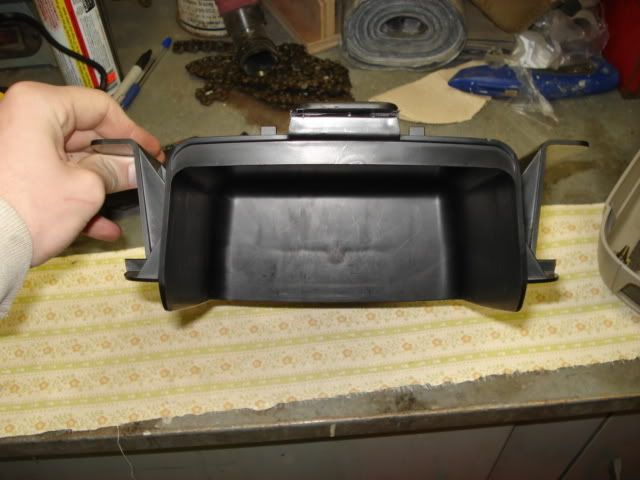

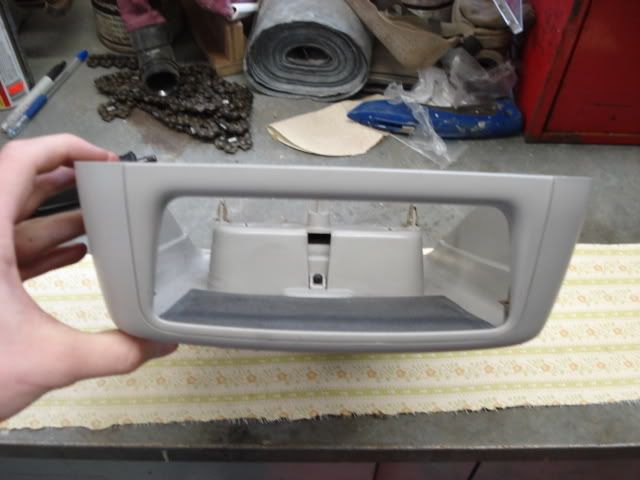

The original unharmed upper portion to the overhead console. Front view.

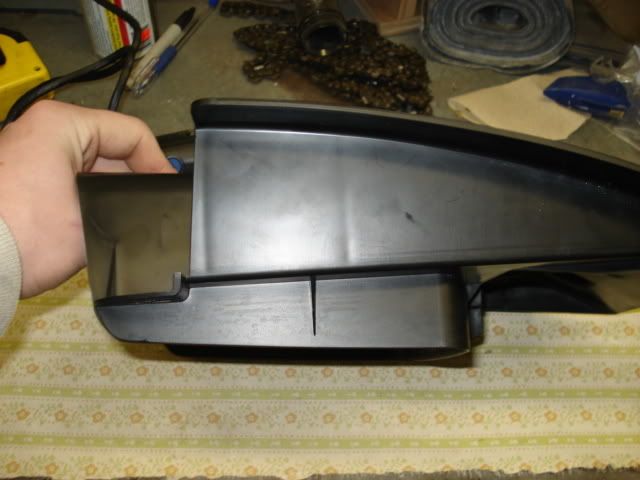

Drivers side view.


First I had to cut off everything hanging down below the side skirt line (where the front clips connect) Also you can see in here that I had many more cuts, at this point I only needed to cut about 1" more of material in various places and I would have been nearly screwed (the console would have been in about 5 seperate pieces, some of which needed to remain together lol )

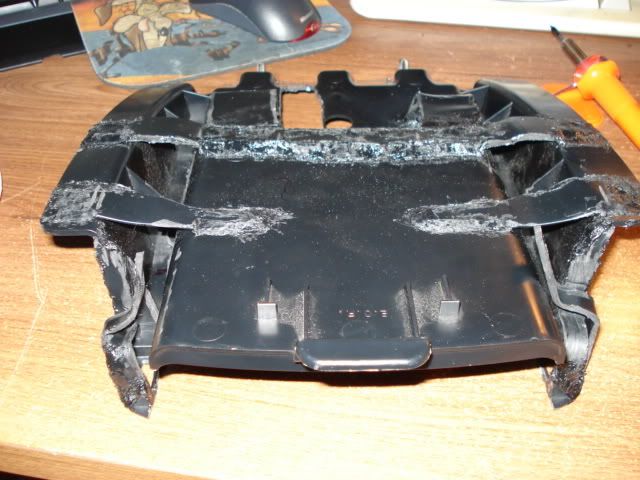

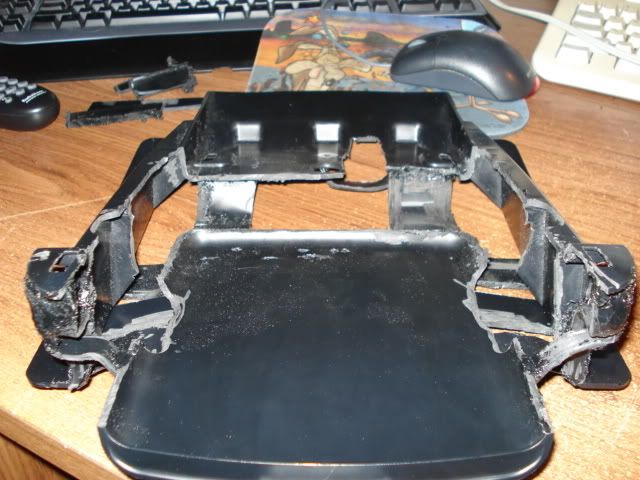

This is when I moved on to start the long journey of reinforcing the console and structurally attaching the pieces I needed to remain. Here I took what I cut off from the very bottom and straightened it with a head gun then welded it to the top plate with just a simple soldering iron. I then cut off the extra that stuck out on both sides and used them to weld up further as more reinforcement. This is where if I had cut just one more inch this top plate (which holds the mounting tab to the cab, would have been a completely seperate piece.)

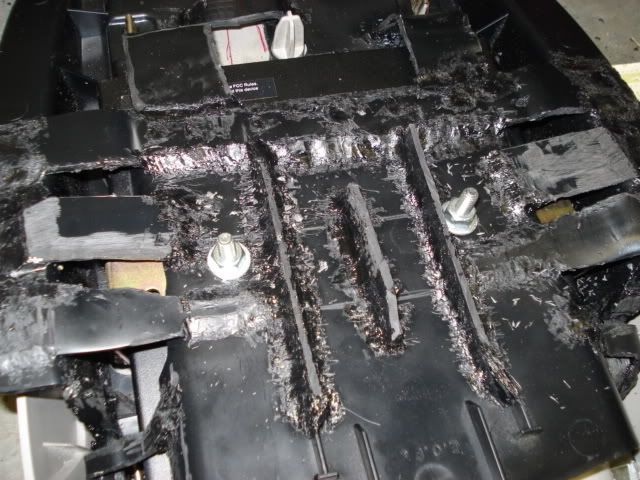

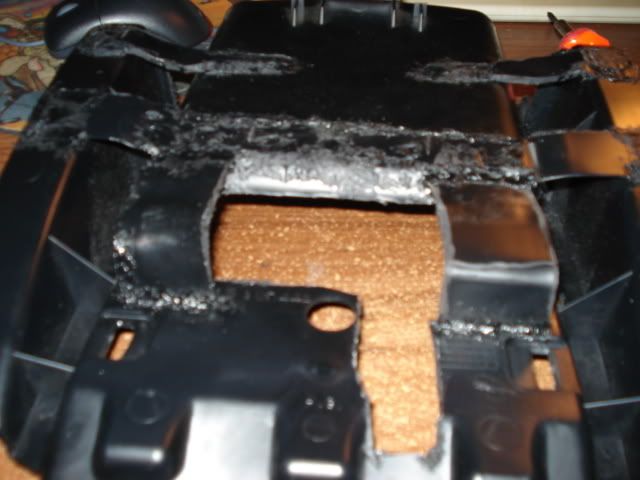

Now everything along the back of the cubby portion had to be trimmed out to make room for the cb case as well as for the coax and power/ground wires to be run.

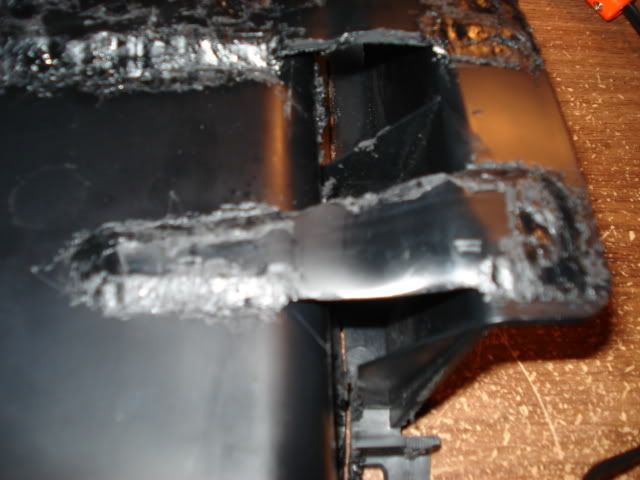

This also was reinforced with little angle tabs to link the upper plate to the lower portion and stiffen the entire unit. Also another arched tab was put over the portion cut out for the wires, this connects the left and right sides and again adds some rigidity (I can use all I can get the way this thing is getting cut up lol)




At this point this is what the front and side profiles looked like. Note how there is next to nothing for material around where the front clips connect, these were very flimsy and I figured they would just snap off if I could even get them to clip.

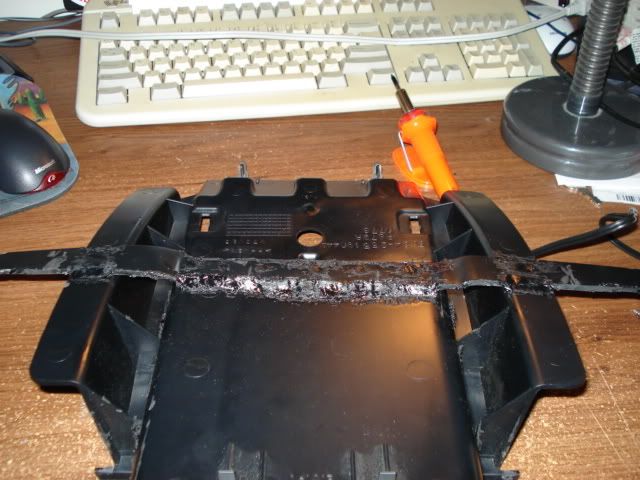

Again I started using small pieces cut off from the original, I cut some small strips and heated them to a shape that seemed like it would work. This starts out kinda silly looking and all but in the end works pretty good when all build up.

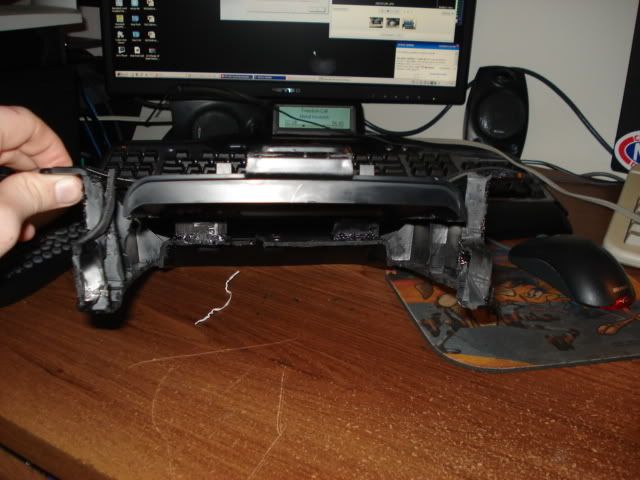

Well at this point I thought I was almost complete, seemed everything would still snap together and would all work, I just had some minor trimming to get the cb case to fit in and work, and everything still clipped together. However I was relying on the 4 little clips that hold the lower portion (visible) to the upper portion (hidden) to hold the entire weight of the CB, it seemed like it would hold but I knew if I hit a good bump somewhere the thing would come crashing down and be dangling by the wires. Sooo now time for more "modifications" lol

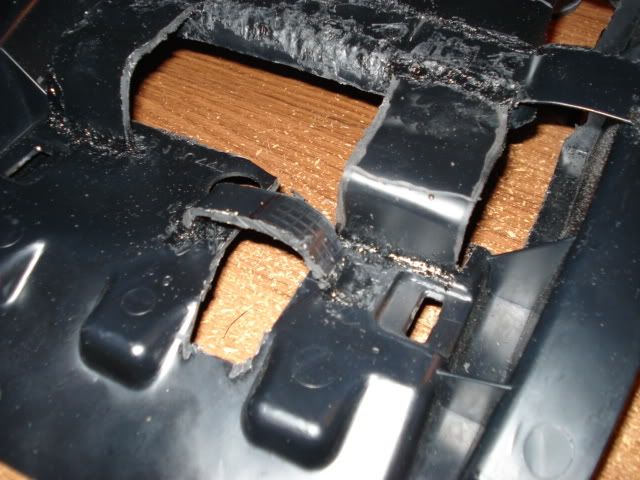

Here you can see where I had to notch the rolled edges of the top plate so that I could fit the metal mounting bracket that was supplied with the cb. Also the lower side skirts had to be notched as well for the bracket and the thumb screws that connect the bracket to the cb itself.


By doing this I took most of the rigidity out of the top plate, which was a crucial structural member holding the majority of the weight of the cb and connecting directly to the roof. So now to get that back I again cut little strips and welded them along the top face of the upper plate to stiffen it along where I notched the lower rolled edge.

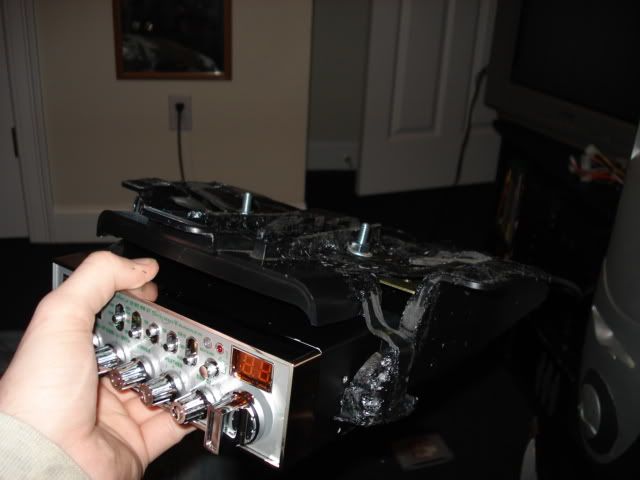

Next I took the mounting bracket and lined everything up as it should be and from here I drilled through the plastic console and into the bracket enough to leave a center mark. Then drilled the metal bracket and got everything all bolted together. Now the CB is bolted directly to the upper portion of the console not far from a good mount to the roof and the plate holding the weight has been stiffened pretty good so now I am pretty confident with the whole thing.

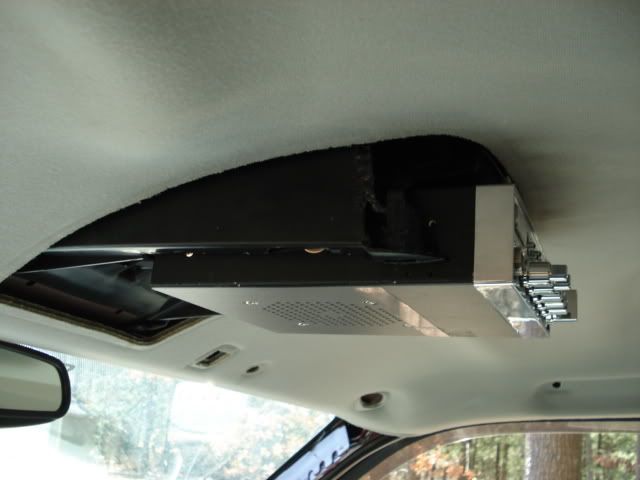

Here it is places back up in the cab and sitting pretty. The black upper portion to the console is held to the cab by a tab near the front of the cb, then held all along the edges by the headliner and finally by 2 clips that push into the roof at the top of the windshield.


2005 F350 Crew Cab Long bed
6.0L / Auto 4x4
SCT X3 5" Magnaflow
4" RCD lift, a bunch of stereo gear and a computer
jdc753 is offline
Sponsored Links
Advertisement

post #2 of 21 (permalink) Old 03-26-2008, 02:19 PM Thread Starter
6Leaker

jdc753's Avatar

Join Date: Feb 2008
Location: Norton, MA
Posts: 6,719
Send a message via AIM to jdc753
Re: CB Install, overhead console and mirror mounted antennas **Many Pics**

Now what I have skipped over from now is the modifications necessary to the visible portion of the console and what tidies everything up nice and neatly.

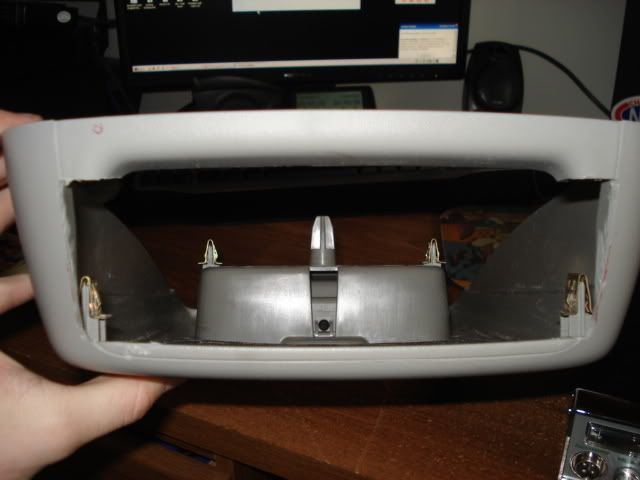

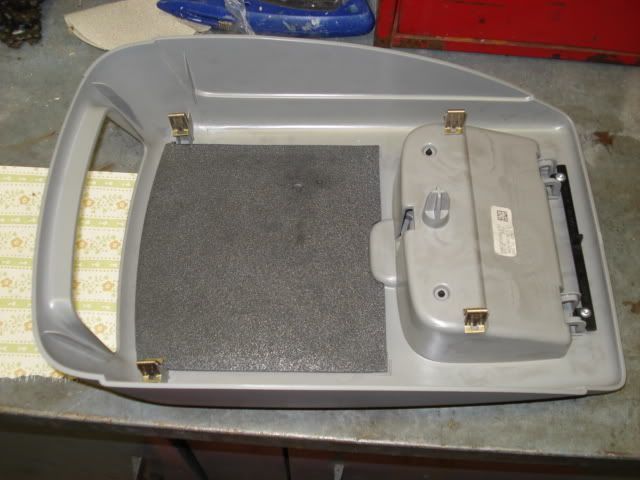

This is what the lower portion looked like shortly after I pulled it from the truck.



I very carefully trimmed out the face so the cobra could poke through, and believe me when I tell you that you can't fit much of anything bigger into this spot. I trimmed along the bottom edge over (this leaves about 1/8" to a 1/4" along the top in the opening, again it was just all careful cut some check, cut some more and check until the unit could barely fit through.

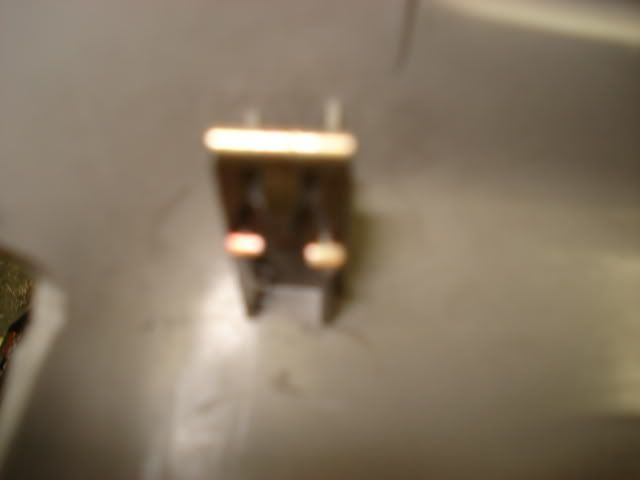

And here is where it gets REALLY tight. I actually had to trim off the a little bit of the metal mounting clips so the cb could squeeze in between.

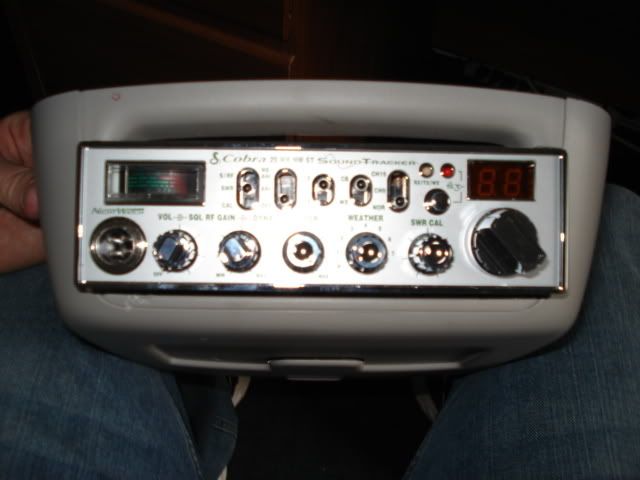

Now with all this done and the cb mounted up to the roof the lower portion can be slipped over the cb and then pushed up and clipped into the upper portion. I still need to tweak a couple of things with this process though as the front part doesn't quite want to clip on.



So far I have only driven around for a couple of days with this, but it has been pretty much fine, got the radio tuned and seems to work pretty good, not exactly sure on range yet though. The position makes it a little bit hard to see from the drivers seat, just need to lean back a little bit but its far from unbearable.

Next I wanted the look of the antennas out on the mirrors. I'm still trying to get used to how tall the 4 footers are, hoping I'll get used to it or maybe eventually switch to 3 footers. I purchased a Firestik brand 18' coax cable setup for dual antennas. After reading about how its not good to coil the cable up unless its in big loops I figured it wouldn't be too bad and work in my advantage to run the drivers side cable down the passenger side a-pillar and then accross the dash and the opposite side.

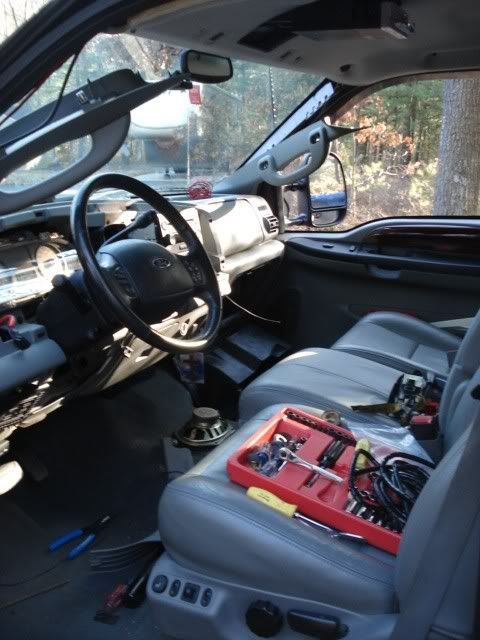

Things looked like a mess for a while but working in the dash with these trucks is actually pretty easy once you get down how everything comes apart.


Ultimately I got the coax along with a 16ga wire (to act as a grounding strap) run through the boot along with the door wiring and out into the door. The drivers side for this was a ROYAL PITA basically just stuff your hands in there and feel around for a while till everything is numb and skin peeling off, then poke around for a bit longer lol. Reaching through the hole in the cab from the door side I could feel a small plastic skin (sort of like what covers the inside of the doors) that had a hole just big enough for the door harness to feed through and not much else. Eventually I got my finger into it and after a while was able to pull hard enough and put a slit in the plastic. This slit gave me a big enough opening to finally get a hold on the 16ga wire and then pull the coax through. This was the biggest pain, other than that it was pretty straight forward.


Once the coax was into the doors the mirrors came off and I fished the coax up through the door and out the same hole the mirrors harness goes through. This is the only spot I am sort of worried about, however I need to pull the passenger side mirror off for other reasons, so I will check it then and see how its held up over the past couple of days and if I need to make any more slight changes.


With the mirror off the door side cover could be popped off (4 little clips from the back side) and then slid out far enough to assess where to run the wire. I wouldn't call this the best spot as far as the wire is concerned but it is the most aesthetically pleasing. I just took my dremel with a small sanding cylinder on it and carefully made a opening just big enough for the wires to fit through.


With everything out all I needed to do was make sure I had just enough wire to run to the mount and push the rest back into the door. After that I used a bit of spiral loom to cover the coax and 16ga wire and make it look pretty and I was done. I had to purchase longer bolts for the brackets to make work. I had painted the brackets but just wanted it all installed instead of taking the time to paint the bolts, so I will be doing that later on to make it all look better. The grounding wires are terminated in the dash just behind and to the left of the radio under a factory bolt.


And thats my story, little bit long but now if anyone wants to do the same process and not sure of what it would take they can see. So far I'm happy with the outcome and just a few more minor tweaks and I will call it finito.
