Painting Interior Dash Pieces

So I just picked up the dash part from an 2005 F-350 that has the little glove compartment under the intergated trailer brake. It is the wrong color though, instead of gray its tan. I have never really painted interior pieces with much luck, just wondering if anyone had a process to do it?

TIA

99 PSD 4x4 CCLB
05 PSD 4x2 RCLB
JohnT is offline
Sponsored Links
Advertisement

post #2 of 7 (permalink) Old 08-28-2009, 02:04 AM Thread Starter
PSN Veteran

Join Date: Jul 2007
Location: SE MI
Posts: 1,885
Send a message via AIM to JohnT
Re: Painting Interior Dash Pieces

Link

That is basically the part I have to paint.

99 PSD 4x4 CCLB
05 PSD 4x2 RCLB
JohnT is offline
post #3 of 7 (permalink) Old 08-28-2009, 02:40 AM
6Leaker

jdc753's Avatar

Join Date: Feb 2008
Location: Norton, MA
Posts: 6,719
Send a message via AIM to jdc753
Re: Painting Interior Dash Pieces

I have used this Graphite Interior Paint Aerosol 12 oz Net I have used it on fiberglass pieces to match the lower dash, as well as my overhead gauge pod and center console.

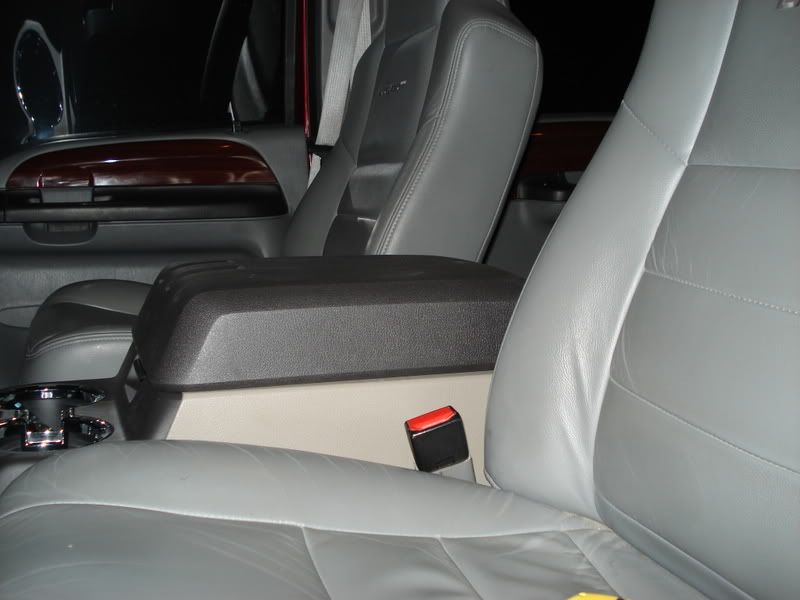

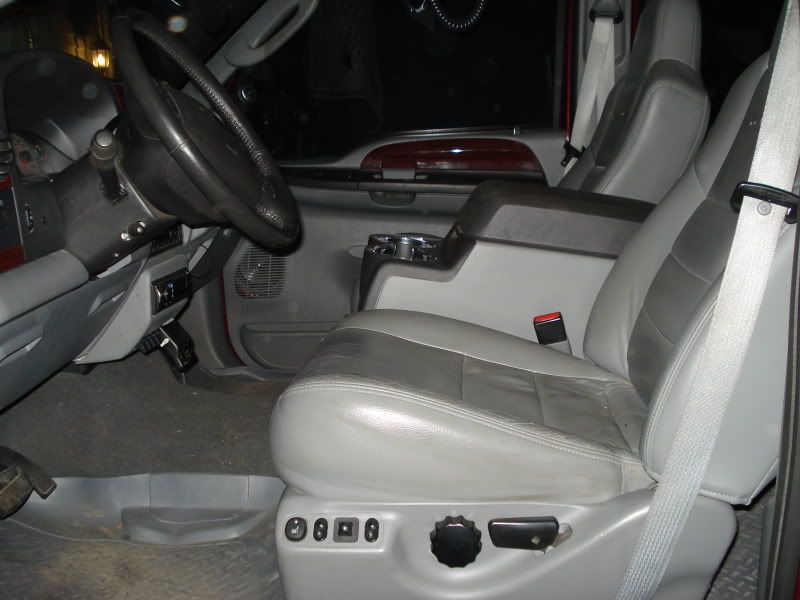

Here is a before/after shot for the console to see the differences





At first it doesn't look quite like its gonna match but when it dries up its pretty much a perfect match, plus they have all the other colors you could need.

2005 F350 Crew Cab Long bed
6.0L / Auto 4x4
SCT X3 5" Magnaflow
4" RCD lift, a bunch of stereo gear and a computer
jdc753 is offline

post #4 of 7 (permalink) Old 08-28-2009, 12:21 PM Thread Starter
PSN Veteran

Join Date: Jul 2007
Location: SE MI
Posts: 1,885
Send a message via AIM to JohnT
Re: Painting Interior Dash Pieces

Did you just spray over the exsisting color or did you do any prep work to it before hand?

99 PSD 4x4 CCLB
05 PSD 4x2 RCLB
JohnT is offline
post #5 of 7 (permalink) Old 08-28-2009, 12:48 PM
6Leaker

jdc753's Avatar

Join Date: Feb 2008
Location: Norton, MA
Posts: 6,719
Send a message via AIM to jdc753
Re: Painting Interior Dash Pieces

Quote:
Originally Posted by JohnT View Post
Did you just spray over the exsisting color or did you do any prep work to it before hand?
I ended up using a degreaser on it but don't think it was necessary, mostly just wanted it good and clean. Something like windex would probably work good, just can't leave any residue on the plastics. I had read somewhere about sanding them lightly but this certainly isn't necessary from what I have seen.

2005 F350 Crew Cab Long bed
6.0L / Auto 4x4
SCT X3 5" Magnaflow
4" RCD lift, a bunch of stereo gear and a computer
jdc753 is offline
post #6 of 7 (permalink) Old 08-28-2009, 01:37 PM
PursuitInterceptor

HeavyAssault's Avatar

Join Date: Jul 2007
Location: Middle, VA
Posts: 3,376
Re: Painting Interior Dash Pieces

I went overboard with my prep on the panels I painted. I used a green scrubbie with dish liquid to clean. After drying I sprayed with Bulldog adhesion promoter then I used the Krylon Fusion. It's a tad glossy but you can find the flat stuff if you desire less bling. I painted the kick panels to see how well they would hold up and have done quite well so far.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


You see, in this world there's two kinds of people my friend....those with loaded guns, and those who dig.

You dig.
HeavyAssault is offline
post #7 of 7 (permalink) Old 08-29-2009, 02:02 PM Thread Starter
PSN Veteran

Join Date: Jul 2007
Location: SE MI
Posts: 1,885
Send a message via AIM to JohnT
Re: Painting Interior Dash Pieces

I think Im going to order the paint that ITP diesel has, because its supposedly an exact match(or close as you can get to it). Then I will also get some adhesion promoter to spray before hand.

Thanks for the help!

99 PSD 4x4 CCLB
05 PSD 4x2 RCLB
JohnT is offline
