Post/prepump filter pump bracket

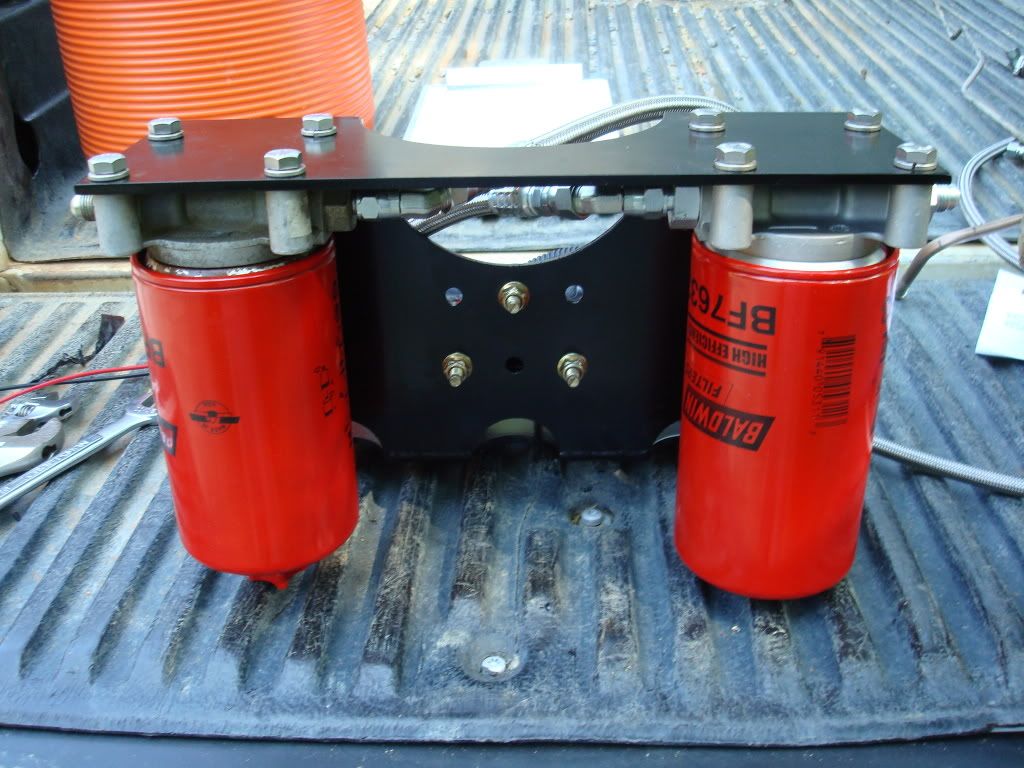

Finally got my fuel filter bracket made. Tried to make hard lines for it but didn't like them. Had braided SS lines made and they still didn't turn out like wanted but its functional. Hopefully after I get off work in the morning I'll finish getting everything installed.






1999 F350 CC XLT 4x4 6spd
2006 F350 CC KR 4x4
Barnbuilder is offline
Sponsored Links
Advertisement

post #2 of 15 (permalink) Old 06-20-2010, 10:09 PM
PSN Veteran

TARM's Avatar

Join Date: Nov 2009
Location: Winchester, Virginia
Posts: 4,865
Re: Post/prepump filter pump bracket

How are you going to be mounting it?

The fit and finish look great.
TARM is offline
post #3 of 15 (permalink) Old 06-20-2010, 11:09 PM Thread Starter
PSN Veteran

Join Date: Aug 2007
Location: Waxhaw, NC
Posts: 825
Send a message via AIM to Barnbuilder
Re: Post/prepump filter pump bracket

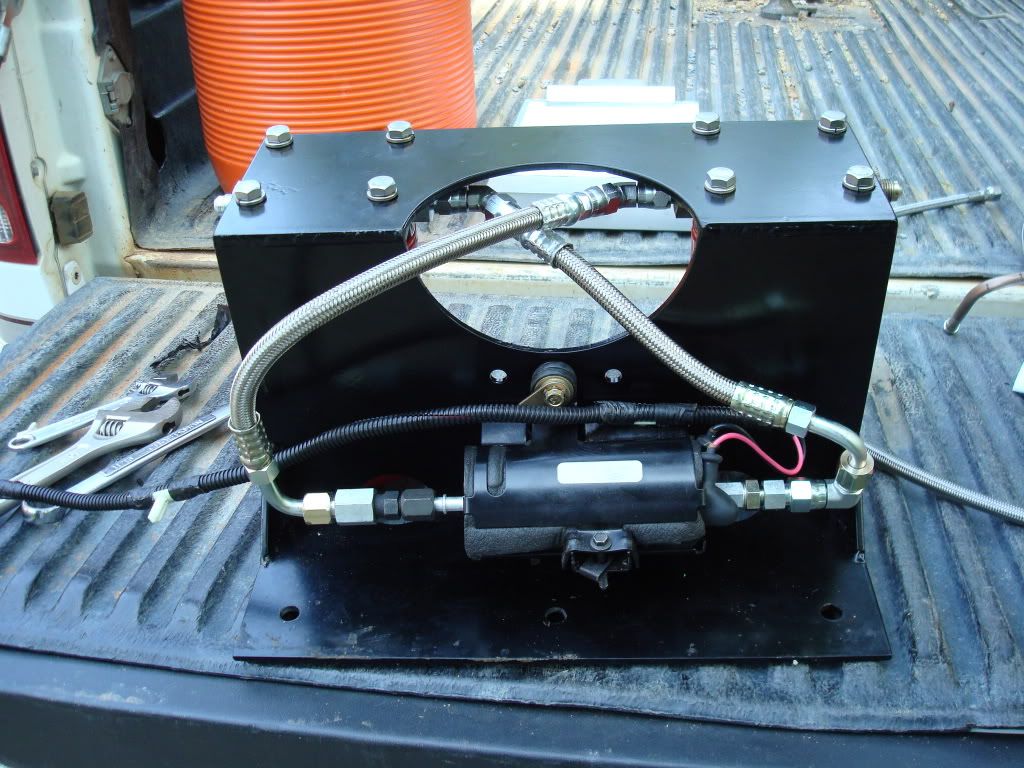

Had it powdercoated along with a bunch of horsestall materials. My buddy cut it out on his waterjet. Its mounted to the bottom of the frame just ahead of the fuel tank. Used the three holes on the bottom flange in the second picture to mount it.

1999 F350 CC XLT 4x4 6spd
2006 F350 CC KR 4x4
Barnbuilder is offline

post #4 of 15 (permalink) Old 06-20-2010, 11:43 PM
PSN Veteran

TARM's Avatar

Join Date: Nov 2009
Location: Winchester, Virginia
Posts: 4,865
Re: Post/prepump filter pump bracket

OK. My brain was not working and it kept looking like you would have to install it upside down. That would not have worked for water sep or changing filters.
TARM is offline
post #5 of 15 (permalink) Old 06-21-2010, 12:34 AM
Waitin' on 500

Choupique108's Avatar

Join Date: Feb 2009
Location: Louisiana
Posts: 2,109
Re: Post/prepump filter pump bracket

good looking bracket.

1997
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Single Cab Dually
S366 w/Irate mount and plenums, EFuel, Intercooler, P.I.S 175/80s,
Corbeau seats w 08 console, 19.5s, Black Interior with swede headliner and visors,
Custom badges, Flight Fab/DIY traction bars.

2012 CCSB F250 Ultimate Lariat.
Choupique108 is offline
post #6 of 15 (permalink) Old 06-21-2010, 12:47 AM
PSN Local

Join Date: Feb 2009
Location: WASHINGTON
Posts: 278
Re: Post/prepump filter pump bracket

Good looking setup

99.5 F350 CC LB HAND SHAKER 09 tow mirrors. QSSB with Irate mount. 4inch exhuast PHP Chip, Adrenaline HPOP. Home made Fuel system with TSD Sump, Banks Intercooler.
Jordy53 is offline
post #7 of 15 (permalink) Old 06-21-2010, 01:26 AM
Village Idiot

southmike's Avatar

Join Date: Jul 2007
Posts: 8,209
Re: Post/prepump filter pump bracket

What are the specs on the 2 filters?
I was looking at a racor twin mount but was thinking
It was over kill unless I went something like 30, then 10
They make a 2 micron but i'd stick it after the pump loser to the cab

Early 99 f350 4x4 crew cab, auto. pmt2 pcm
2001 cup holder ,T500, MAX AC ASSIST AC mod, Diy Twin tymar, TS chip, Powerslots & Hawk pads, ford AIC, ..... with big fat want to list.
southmike is offline
post #8 of 15 (permalink) Old 06-21-2010, 03:08 AM
OEM Moderator

Tom S's Avatar

Join Date: Jul 2007
Location: Littleton, Colo
Posts: 9,381
Send a message via AIM to Tom S
Re: Post/prepump filter pump bracket

I love it when guys post up photos of nice work.
Tom S is offline
post #9 of 15 (permalink) Old 06-21-2010, 11:59 AM Thread Starter
PSN Veteran

Join Date: Aug 2007
Location: Waxhaw, NC
Posts: 825
Send a message via AIM to Barnbuilder
Re: Post/prepump filter pump bracket

The filters and bases are from Dennis at ITP/Sinister.

1999 F350 CC XLT 4x4 6spd
2006 F350 CC KR 4x4
Barnbuilder is offline
post #10 of 15 (permalink) Old 06-21-2010, 02:31 PM
PSN Veteran

Join Date: Jul 2008
Location: Northwest, OR
Posts: 2,081
Re: Post/prepump filter pump bracket

Nice looking bracket!
bigjake0524 is offline
