post #1 of 25 (permalink) Old 10-19-2008, 01:13 AM Thread Starter
A Ghost these days.

mad_matt's Avatar

Join Date: Jul 2007
Location: Gaithersburg, MD
Posts: 1,017
Send a message via Yahoo to mad_matt Send a message via Skype™ to mad_matt
Proof that the old 7.3 can make TRK @ 3100 RMPS

Well I think there might be a new trend in power for the old PSD.

First off I must say that this is DB approved info. See attached sheets. There blessed with his signature.

I have a truck that is making power and torque up until it hits the rev limiter. The truck is de-fueling yes the rev limiter is at about 3300 to 3400 per Jody.

Tuning changes are in the works to get more fuel and more revs.

So this is for all the nay sayers that say the old PSD can't make torque above 2500 PRMs.

To level set this truck has a stock cam.\, Stock Crank and cut pistons to the tune of about 16.5/1 compression. It's pushing about 260-270 PSI of compression cold.

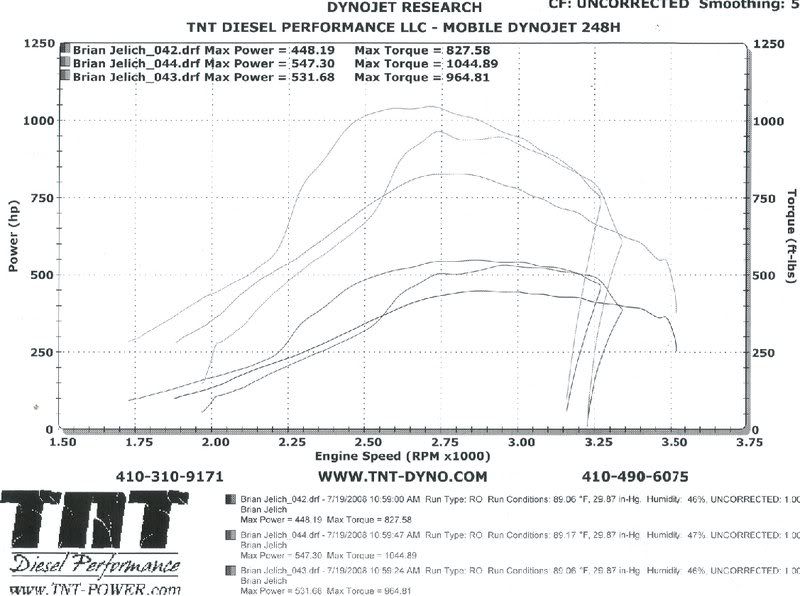

Take a look at these dyno sheets. The HP numbers are off but my 1/4 mile ETs say estimate about 597 HP but stuff happens and it was adyno jet. So here's the prof that I make power and torque till a bit over 3100 RPMs.

Let the games begin.
Attached Images
File Type: jpg SCAN0001.JPG (545.6 KB, 139 views)
File Type: jpg SCAN0002.JPG (502.9 KB, 85 views)
File Type: jpg SCAN0003.JPG (511.1 KB, 63 views)

Got Boost?
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Slightly modded 01 F350 CC SB 4X4

Powered by Oil driven by Madness.
Post Injector upgrade Spin: 577/944
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Dynojet
HP: 597 BWD Superflow
13.152 @ 104.7 mph
Mods: Everything plus the Twins.
In the mail: Everyone's stuff but my own
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Planned upgrades: sho mods!
mad_matt is offline
Sponsored Links
Advertisement

post #2 of 25 (permalink) Old 10-19-2008, 01:19 AM
Laces Out

bigrpowr's Avatar

Join Date: Jul 2007
Location: So.Cal, U.S.A.
Posts: 12,314
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

its the turbos bringing the power up in the rpm range if you dont have a cam. congrats.

08' F250 4x4 w/ 3:55's
bigrpowr is offline
post #3 of 25 (permalink) Old 10-19-2008, 01:26 AM Thread Starter
A Ghost these days.

mad_matt's Avatar

Join Date: Jul 2007
Location: Gaithersburg, MD
Posts: 1,017
Send a message via Yahoo to mad_matt Send a message via Skype™ to mad_matt
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

Thanks I was impressed even though I did not get to my 700 HP goal.

Now I just need to uncork it a bit more and get some more air on the high side and I'll be sitten pretty as there is plenty of fuel left to burn.

From what I heard for the crowd I think my pig almost won the smoke show.

Thanks Mike She's coming along.

Some last minute turbo tweaks have helped and the live tuning made it soooo much more fun to drive. Plus I can dress her up and take her to town without smoking up the place.

Got Boost?
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Slightly modded 01 F350 CC SB 4X4

Powered by Oil driven by Madness.
Post Injector upgrade Spin: 577/944
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Dynojet
HP: 597 BWD Superflow
13.152 @ 104.7 mph
Mods: Everything plus the Twins.
In the mail: Everyone's stuff but my own
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Planned upgrades: sho mods!
mad_matt is offline

post #4 of 25 (permalink) Old 10-19-2008, 01:35 AM
Cummins Power

mech2161's Avatar

Join Date: Jul 2007
Location: Morgantown WV
Posts: 3,172
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

Let Jody back at it. He made a believer out of me.

Kevin

12v CONVERSION IN PROGRESS, Special thanks to:
South Bend Clutch, MOTORSPORTSSUPPLY.COM, Pure Diesel Power & Performance, Carson Stauffer Diesel Service, Weston Shupe, zstroken
mech2161 is offline
post #5 of 25 (permalink) Old 10-19-2008, 01:50 AM
10.61 @ 128 MPH

Powersmoker's Avatar

Join Date: Jul 2007
Location: Outer Banks, NC
Posts: 2,297
Send a message via AIM to Powersmoker
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

Looks like the turbo didnt lite until it was high in the rpms. Prolly could of picked up a some more hp if it lit at say 2500 rpms. Your truck has over 600 hp written all over it.


heres my old dyno sheet. The turbo lit a little sooner than yours and made peak power around 2750 rpms. At 3100 rpms it dropped power just a little.


2000 F-250 Regular Cab
1069 RWHP 1768 Torque
10.55 @ 129 MPH NOS

2000 F-350 ECLB DRW
Tow Rig


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Murff Racing Twisted Diesel
Empire Diesel DieselSite
Swamps Diesel
Powersmoker is offline
post #6 of 25 (permalink) Old 10-19-2008, 01:58 AM Thread Starter
A Ghost these days.

mad_matt's Avatar

Join Date: Jul 2007
Location: Gaithersburg, MD
Posts: 1,017
Send a message via Yahoo to mad_matt Send a message via Skype™ to mad_matt
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

I'd say that the twins did not fully light I was down ~25psi on boost.

Not sure if I have a boot that was riped cause 2 runs later it gave up a run where we filming a street run.

So you're dead on there but I still had mucho fuel left so I'll agree that she's well into the 600s.

Got Boost?
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Slightly modded 01 F350 CC SB 4X4

Powered by Oil driven by Madness.
Post Injector upgrade Spin: 577/944
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Dynojet
HP: 597 BWD Superflow
13.152 @ 104.7 mph
Mods: Everything plus the Twins.
In the mail: Everyone's stuff but my own
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Planned upgrades: sho mods!
mad_matt is offline
post #7 of 25 (permalink) Old 10-19-2008, 02:42 AM
Banned

Join Date: Jul 2007
Location: Twilightzone
Posts: 7,764
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

How is it so much different than these pulls?





Other than that fact that I didn't cut the fuel until 3600 or so rpm. You're not the first guy to manipulate boost and fuel to bypass the engine's natural tendency to rip itself apart between 2500 and 2800 rpm.

Revolutionary? No. But a nice power/torque split for sure.
Charles is offline
post #8 of 25 (permalink) Old 10-19-2008, 03:55 AM
Snake Oil Salesman

mattr66's Avatar

Join Date: Apr 2008
Location: Bryan, TX
Posts: 5,346
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

I can do that with the stock PCM as well.... just hold the fuel back and create an artificially high peak. It's called "safe" tuning and you will start to see more of it and more trucks with stock rods seeing 700hp in the near future. Nice curve though... looks more "natural"....
What injectors are you running Matt?

Matt Robinson
Gearhead Automotive Performance

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by PSDPlayer View Post
If you have nozzles that were Extrude honed over and over and over again. It will look like a porn stars ass.hole where the pintle is supposed to seal.
mattr66 is offline
post #9 of 25 (permalink) Old 10-19-2008, 04:23 AM
Subject Matter Expert

PowerstrokeJunkie's Avatar

Join Date: Jul 2007
Location: Westminster, MD
Posts: 4,458
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

Man i'd be pissed if i had that much money into the engine and turbos/fuel as you do and only make 577hp.

Stock
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
PowerstrokeJunkie is offline
post #10 of 25 (permalink) Old 10-19-2008, 04:54 AM

Join Date: Jul 2008
Posts: 39
Re: Proof that the old 7.3 can make TRK @ 3100 RMPS

You may want to buy a diaper....

Regards,

Artemus
Artemus Gordon is offline
