03-07 TOW mirror upgrade for 99-03 Finished

I've been looking around on Diesel forums trying to find one solid write up on the Mirror Upgrade for the 99-early 03s. I have found several you can read through to get the just of things, but I want to try my best to make a one stop shop for the complete MOD, from modifying the 03-07 Mirror harness, to installing a 91-94 Ford explorer Momentary defrost switch w/ timer. I understand the OE mirrors heat stays on once the ignition is on, I personally would only like Heat on demand. This is upgrade is popular due to heated Mirrors/Turn signal & running lights. I'm not taking any credit for this upgrade, just compiling information I've found on other threads.

Parts needed:
03-07 Mirrors
03-07 Mirror harnesses
-Left Hand part # 1C3Z14A411BA
-Right Hand part # 1C3Z14A411AA

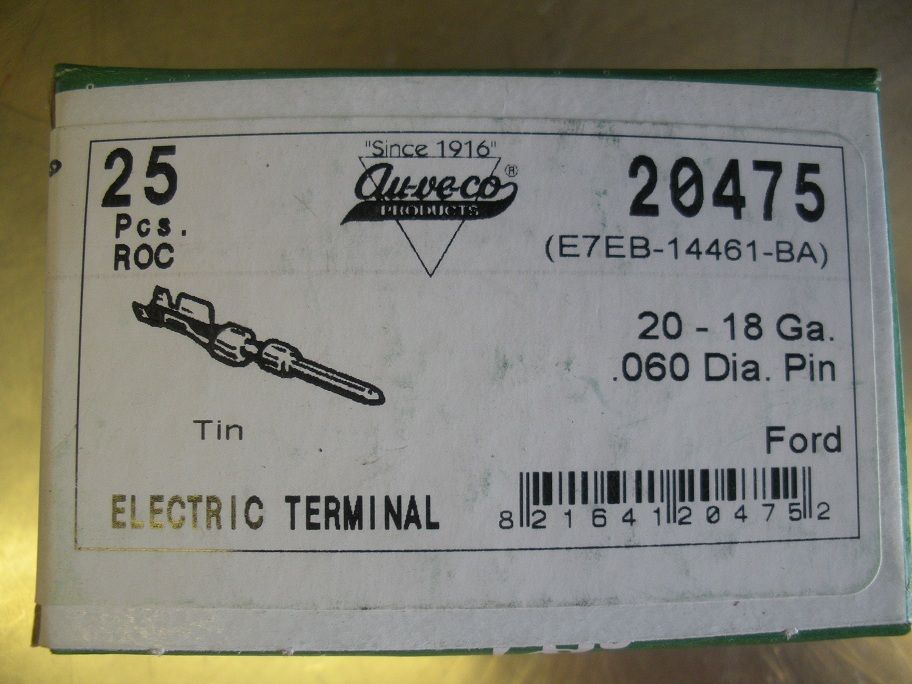

Pins (for Mirror Harness)
-http://www.clipsandfasteners.com/For...0_p/a20475.htm

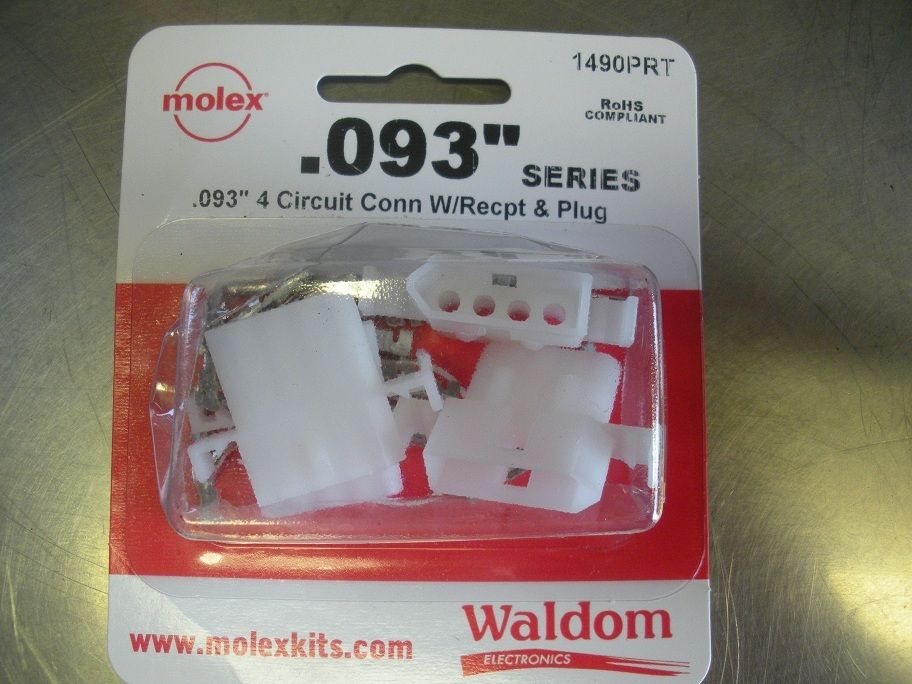

4 pin Molex connectors
-




(this does not include everyday shop parts. ie - electrical tape or wire)





A) Plug for Heated Mirror Power & Ground for Mirror. Later on in the write up, this plug will no longer be needed and will be replaced with the Molex 4 plug. B) Plug for Mirror control C) 03-07 Mirror Plug








As you can see in the picture, Pin hole 4, 7-10 are empty.. We'll only be utilizing pin hole 4 (Turn Signal) & pin hole 7 (running light)


Not too many pictures at the moment. I was supposed to get the rest of my parts in today. I'll take as many pictures as I can of the process, and I'll keep my thread updated as throughout the upgrade.
Jdebo is offline
Sponsored Links
Advertisement

post #2 of 46 (permalink) Old 05-10-2012, 06:57 PM Thread Starter
7.TREE

Join Date: May 2012
Location: Nor-Cal
Posts: 11
Re: 03-07 TOW mirror upgrade for 99-03

Modifying of the Harness

PART 1 - REMOVING the factory heat/ground plug

1. Cut the black Loom holding the original 5 wires


2. Push the red tab (A) from the back of the grey plug. It will need to be pushed far enough so it can be grabbed by a pair of Needle nose pliers.


3. Once the tab is out far enough, pull it out with needle nose pliers


4. Tab is out


5. Once the tab is out, you can now pull out the factory pins for the heat/ground by depressing the Latches (A) that hold the pins in.


6. These latches (A) are what hold the pins in the plug. Removing the Red tab gave us enough leeway to depress the Latches



- I used a Dentistry tool to press the Latches towards the center of the plug while maintaining pulling pressure on the wire connected to the pin. Pin 5 & 6 are the two pins that need to be removed in order to remove the factory plug.

7. Factory heat/ground plug removed



PART 2 - Soldering the Pins


- Grey plug pins ( they considered Terminals but for writing purposes I'll call them pins)



The molex kit comes with (2) male plugs and (2) females plugs.. Males pins for the FEMALE plugs, female pins for the MALE plugs.


1. Cut 8 (5" long) pieces of wire. I used 18g wire, it was what I had laying around. Using 20g wire would make the process easier, I had a couple tight fits with my pins fitting into the grey plug

2. Strip about 1/4" off of each end

3. Solder the Grey plug pins onto each of the (8) wires. Make sure to leave the end of the rubber insulator flush or a tiny gap (A). After you solder the wire, you'll need to crimp the terminal around the wire. It's IMPORTANT to have a tight fit or else it won't fit while trying to insert them into the Grey plug.


4. Repeat this process for the MOLEX pins. Doesn't matter which pins you solder, just make sure that they are all MALE or FEMALE..

5. One harness wires completed. Just need to crimp the Grey plug pins (A). Also, the MOLEX plugs have more forgiving tolerances, crimping the pins (B) very tight is not necessary.


6. Once finished with the soldering and crimping of the pins, you can now insert them into their respected plugs.. For the Grey plug (4,5,6,7).... Molex plug, doesn't matter, as long as you annotate which wire is for what (turn, heat, ground, signal)

-When placing the pins into the MOLEX plugs, push them far enough until the metal tab is flare out (A)..


- once finished with placing the pins into the Grey plug, you can now insert the red tab, just the reverse process.

Finished Harnesses



Still waiting for the Mirrors to show up. Once they arrive, I'll take one day to install them, run the wires and mount the Defrost switch.
Jdebo is offline
post #3 of 46 (permalink) Old 05-19-2012, 02:22 AM
PSN Newb

Tyler R's Avatar

Join Date: Apr 2012
Location: Jacksonville FL
Posts: 13
Re: 03-07 TOW mirror upgrade for 99-03

Out of curiosity if upgrading why not get the 08 and up tow mirrors? I installed them on my 04 and to me they are way better than my 04 tow mirrors.

2013 F250 Lariat ccsb 6.7 stock for now

04 f250 CC 6.0 Lariat fx4 STOLEN
|sct livewire programmer| 4" exhaust| 20" rockstars| 37" nitto trail grapplers| 6" pro comp lift| 08 towing mirrrors| Bulletproofed| 10" jl| 08 taillights| 05 harley davidson headlights| 08 towing mirrors|
Tyler R is offline
post #4 of 46 (permalink) Old 05-20-2012, 01:15 AM
STILL LEARNING

Bradbilt's Avatar

Join Date: Oct 2008
Location: Gilbert PA
Posts: 18,124
Re: 03-07 TOW mirror upgrade for 99-03

How are you going to switch the heaters on? I used a Excursion rear window defroster switch(in stock location) to kick mine on using the explorer 15 min timer. If I needed more I could hit the switch again

Looking for Blue 40-20-40 seat for OBS. PM me if any known
Bradbilt is offline
post #5 of 46 (permalink) Old 05-20-2012, 02:56 AM
<<< THE GAUGE WHORE...

CSIPSD's Avatar

Join Date: Jul 2007
Location: Bend, OR
Posts: 12,082
Re: 03-07 TOW mirror upgrade for 99-03

I used a pair of wire cutters and some connectors. Done in a jiffy!

01 F-250 SC PSD,280k,16 Isspro Gauges, AFE-2,CCV Mod,IAH delete,map reg,Modded H2e, 6.0 IC, 230/100 from P.I.S, Studs, 910 springs, Forged rods, Water injection,Hydra chip-No Limit/Gearhead tuning, Swamps HVHF IDM, MBRP 4" dual's, Aero, 6" tip's, 4" Revtek lift, 37/12.5/16.5 MT's
Joe


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CSIPSD is offline
post #6 of 46 (permalink) Old 05-30-2012, 05:41 PM Thread Starter
7.TREE

Join Date: May 2012
Location: Nor-Cal
Posts: 11
Re: 03-07 TOW mirror upgrade for 99-03

Quote:
Originally Posted by diesel_brad View Post
How are you going to switch the heaters on? I used a Excursion rear window defroster switch(in stock location) to kick mine on using the explorer 15 min timer. If I needed more I could hit the switch again
I just picked up some 91-94 Ford Explorer Defrost switches at the Local Pick-N-Pull.. Ran me about $8 ea, compared to the $15 new on Ebay..



You can only see the (4) male terminals in the pic but there's (5).. I will be finishing the install this weekend, I've been swamped with work and haven't had anytime to finish.. I know there's two shown in the PIC, but only one is going to be used. I picked two to have one laying around for future mods.
Jdebo is offline
post #7 of 46 (permalink) Old 05-30-2012, 05:52 PM Thread Starter
7.TREE

Join Date: May 2012
Location: Nor-Cal
Posts: 11
Re: 03-07 TOW mirror upgrade for 99-03

Here is a pic of one of the Mirrors. I wanted the (smooth) not the textured..



Mirror side connector



Recon Clear inserts I decided to go with

Jdebo is offline
post #8 of 46 (permalink) Old 05-30-2012, 07:20 PM
the stryker god

Join Date: Nov 2008
Location: 615 'till I DIE!!!
Posts: 3,659
Re: 03-07 TOW mirror upgrade for 99-03

Quote:
Originally Posted by Tyler R View Post
Out of curiosity if upgrading why not get the 08 and up tow mirrors? I installed them on my 04 and to me they are way better than my 04 tow mirrors.
because they look like as$
bruce51d is offline
post #9 of 46 (permalink) Old 05-30-2012, 11:17 PM
<<< THE GAUGE WHORE...

CSIPSD's Avatar

Join Date: Jul 2007
Location: Bend, OR
Posts: 12,082
Re: 03-07 TOW mirror upgrade for 99-03

Ditto

01 F-250 SC PSD,280k,16 Isspro Gauges, AFE-2,CCV Mod,IAH delete,map reg,Modded H2e, 6.0 IC, 230/100 from P.I.S, Studs, 910 springs, Forged rods, Water injection,Hydra chip-No Limit/Gearhead tuning, Swamps HVHF IDM, MBRP 4" dual's, Aero, 6" tip's, 4" Revtek lift, 37/12.5/16.5 MT's
Joe


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CSIPSD is offline
post #10 of 46 (permalink) Old 05-31-2012, 12:19 AM
Beef

Join Date: Oct 2009
Location: in a house :)
Posts: 1,552
Re: 03-07 TOW mirror upgrade for 99-03

neat write up so far. I'd like to get the TT mirror electronic folding option for my 08. I saw a newer 2011/12 and the fold in/out!

"New" 05 no payment, all factory 289k
powerlifter405 is offline
